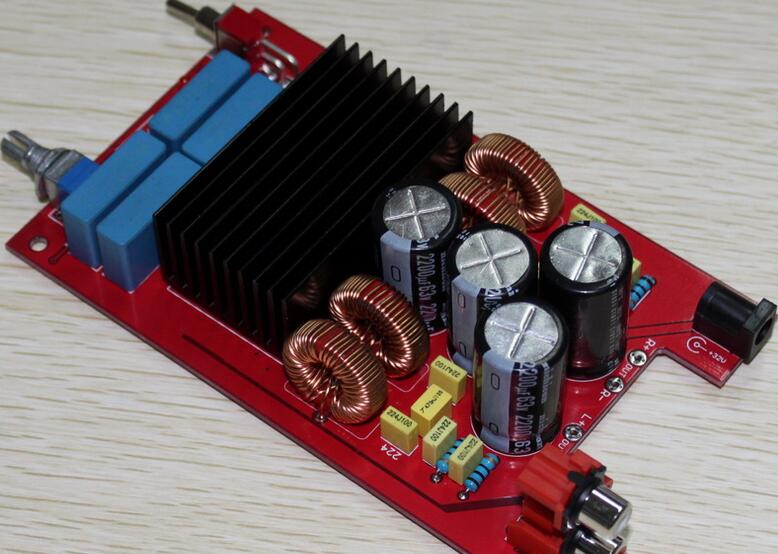

Name：class D power amplifier module 2*100W
Describe：
SL-A19 is the new design of digital power amplifier module, it is new product for using TDA7498, connection is very simple. It is a 100W continuous average per channel , power efficiency and good sound.
Content：
digital 100W power amplifier module,TDA7498 amp board,class D power amp boards
1. Introduce
SL-A19 is the new design of digital power amplifier module, it is new product for using TDA7498, connection is very simple. It is a 100W continuous average per channel , power efficiency and good sound.
Power speaker
Digital multimedia product
Computer and laptop
Portable product
LCD monitor
TV, DVD and the other product
Home Theater
3. Feature
Working Voltage: DC20-DC36V
standy by current:50MA
Output Power: L and R channel MAX2*100W
Output impendance: 4~8ohm
Dynamic Range = 102 dB
High Power, 100 @ 4ohm, 0.1% THD+N
High Efficiency, 90%
Frequency Response:20Hz-20K Hz
Suggest working Voltage: DC 32V
MAX output current:7A
Mute Input
Integrated Gate Drive Supply
Over-current protection
Over and under-voltage protection
PCB material is FR4, thickness
The dimension is 140mm*83mm
