1. Introduce

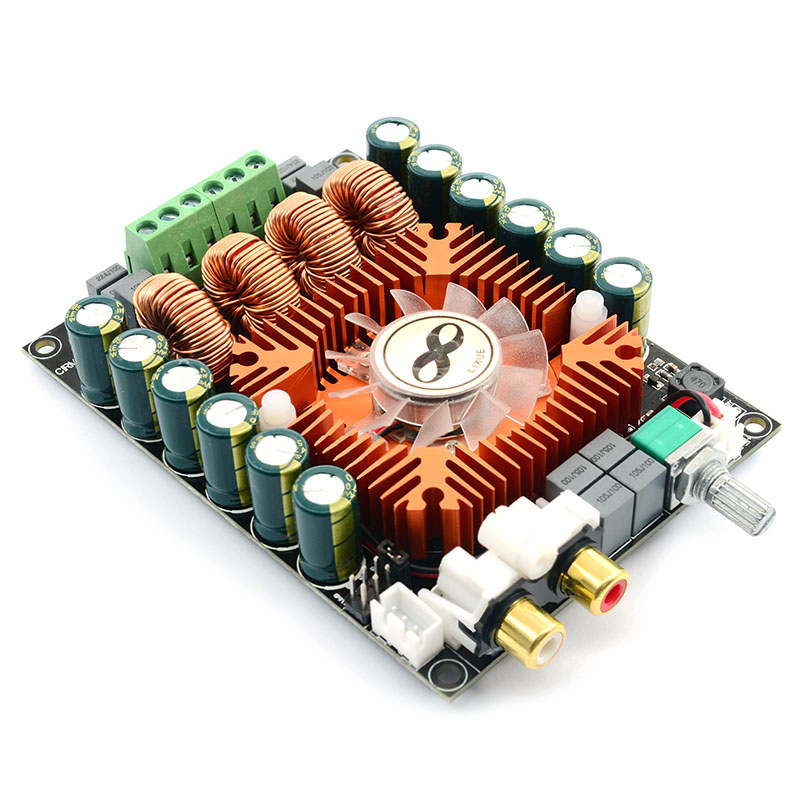

SL-A34 is the new design of digital power amplifier with case, it is new product for using TDA7498E, and connection is very simple. It is a 160W continuous average per channel, power efficiency and good sound. Also, this board can BTL connect, the power reach to 220W

2. Application

·        Power speaker

·        Digital product

·        Computer and laptop

·        Portable product

·        Wireless product

·        TV, DVD and the other product

·        Home Theater　

3. Feature

·        Working Voltage: DC14-DC36V

·        Output Power: L and R channel  MAX2*160W

·        Output impedance: 4~8Ω

·        Dynamic Range = 98 dB　

·        High Power, 160W per channel @ 4Ω, 10% THD, 36VDC

·        1*220W output power mono parallel BTL at 10%THD with RL=3Ohm, 36VDC

·        Parallel BTL function using the mode pin

·        Four selectable, fixed gain settings of normally 23.8dB, 29.8dB, 33.3dB, and 35.8dB

·        Differential inputs minimize common-mode noise

·        Standby and mute features

·        High Efficiency, 85%

·        Thermal overload protection

·        Over and under-voltage protection

·        PCB material is FR4, thickness 1.6MM, Cu thickness is 2OZ

·        The dimension is 107*78MM
