Content：

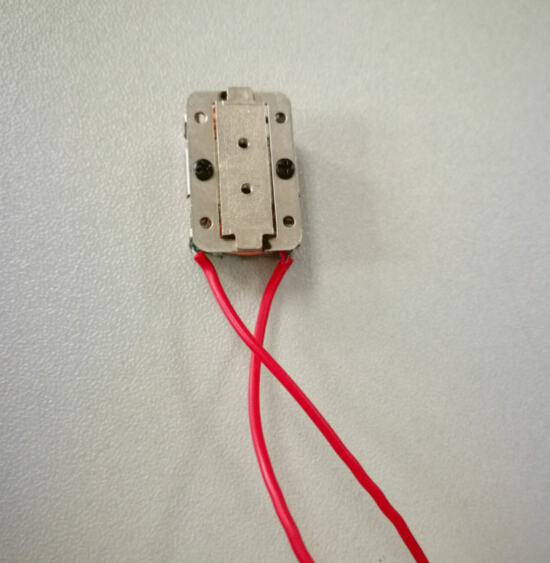

Bone Conductor Transducer 8ohm 3W

earphones bone conduction

Specification:

1 : Operating voltage(max): 12 Vpp

2 : Average working voltage: 3.7 V

3 : Sound pressure level: 88dB @1kHz

4 : Current consumption(Max):600mA

5 : Average working current:100mA

6 : Impedance: 8 ± 5 % Ohm

7 : Frequency: 300-19000Hz

8 : Rated input(W): 1W

9 : Max input(W): 3 W

10:Operation temperature:-20 to +60 deg

11:Storage temperature:-30 to +60 deg

12:SIZE: 21.5*9*14.5MM

13:Model number:RC-BC01
