Name:electrodynamic sound exciters 4ohm 10W
Describe:
electrodynamic sound exciters 4ohm 10W
Content:
electrodynamic sound exciters 4ohm 10W

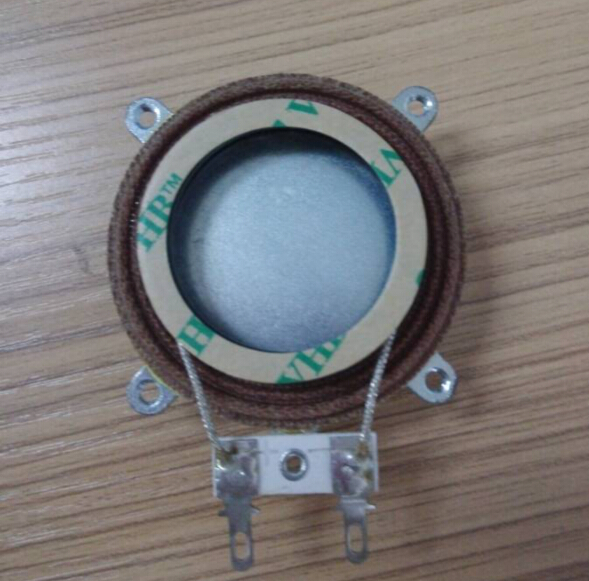

High End 4ohm 10W sound surface transducer with metal frame 4 holes for fixing
Electro dynamical exciter for stimulating bending waves on plates. The unit can be attached to the surface of the plate by gluing or screwing
Specs:
impendance: 4ohm +-15% at 1K Hz 1.0V
min resonant REQ : 470 +-20% Hz , test condition: without baffle
power: 10W,MAX 12Watt
output S.P.L : 81+-3db At 600,800,1K,1.2K Hz
Frequency range: F0-19 KHZ ,Average SPL+-10db
distortion: 5% Max at 1000HZ 10W
operation termperature: -20deg to 50deg
storage temperature: -40deg to 60deg
diameter:48mm
weight:150g
