Name：High Power Bluetooth Stereo Module Support APTX
Describe：
High performance large power ,bluetooth chip CSR BC08 ,support APTX,long transmitting distance can reach MAX 20Meters.
Content：

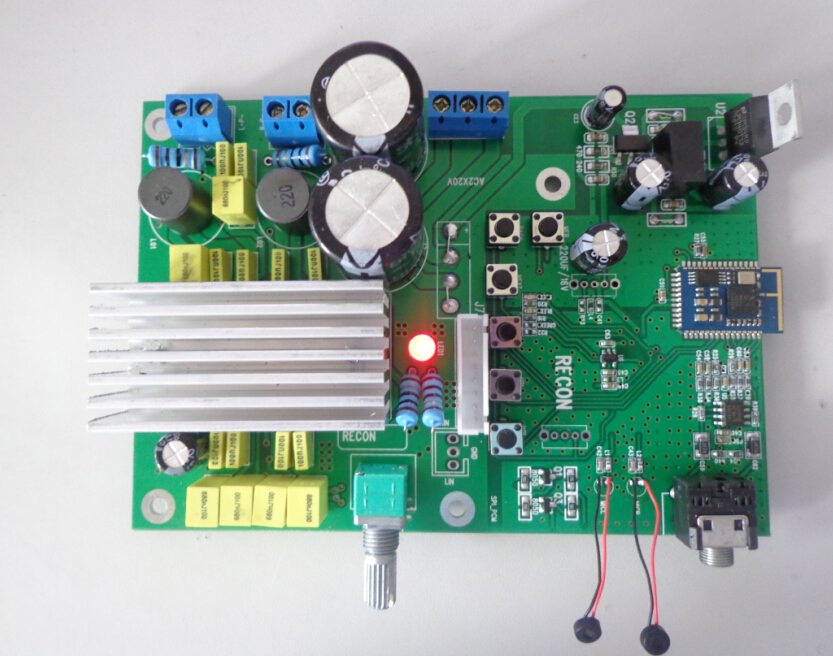

High power bluetooth amplifier module support APTX,CSR bluetooth audio amplifier
SL-BG01 is the new design of bluetooth amplifier, class D design, high performance, lower distortion. it is new product for using TDA8920BTH IC, connection is very simple.High Power efficiency.

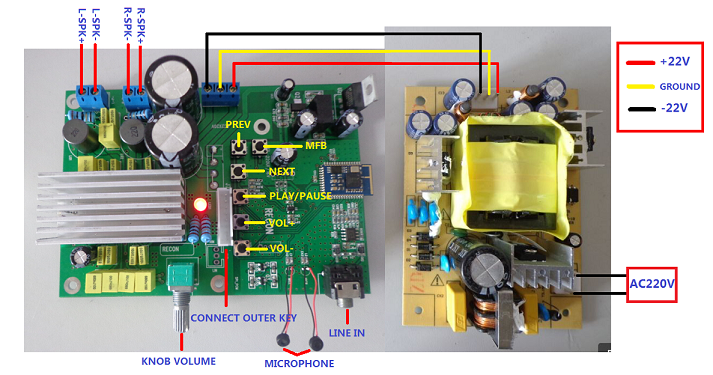

Working Voltage: Dual power supply AC 20-25V
Output Power: L and R channel 2*60W Output,MAX 2*80W
impendence: 4~8ohm
Low distortion
Wide power bandwidth
Output Pin Short-Circuit Protection
Thermal protection with parole circuit
Working efficiency: 90%
Frequency: 20Hz to 50KHz
Components use high quality parts
Bluetooth module is a Max.4dBm( Class2 ) module.
Fully Qualified Bluetooth v4.0.
Integrated 16-bit Stereo Audio CODEC 95dB SNR for DAC.
Wideband speech supported by HFP v1.6 Profile and MSBC codec.
A2DP connection to
SBC, MP3, AAC, APTX decoder support.
HSP v1.2/ HFP v1.6/ A2DP v1.2/ AVRCP v1.4
Bluetooth used Isolated Power Supply
Support mute function
Support key operation and outer key connection
