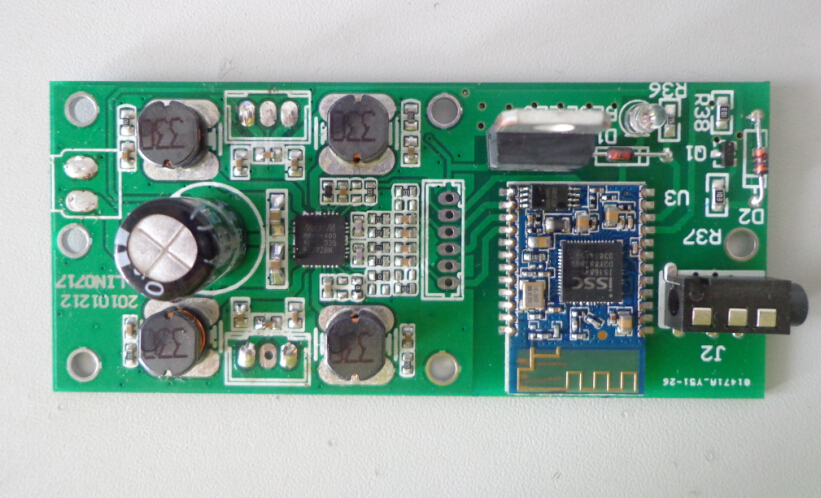

bluetooth stereo amplifier board 2*15W,bluetooth amplifier module,mini bluetooth amplifier.class D bluetooth amplifier board


• MAX 2*15W output power in stereo mode(8ohm 18V THD=1%)
•
  Wide 8V to 18V Supply Voltage Range


• Single Supply Operation


• Low EMI: Active Emissions Limiting


• Clipping Limiter


• Low Quiescent Current


• Thermal Foldback



Thermal and Overcurrent Protection
with bluetooth function
1. Bluetooth 3.0+EDR compliant

2. Typical +2dBm Class 2 output power

3. Receiver Sensitivity: GFSK typical -90dBm, /4 PSK typical -90dBm, 8DPSK typical -83dBm

4. HCI UART interface

5. CVSD, A-law, -law CODEC algorithms for voice applications

6. SBC ,MP3, AAC decode for Bluetooth stereo streaming

7. Build-in High performance stereo codec

8. Cap-less headphone driver

9. Audio DAC: 93dB SNR

10. HSP, HFP, A2DP, AVRCP 1.0 ,GAVDP profile support

11. I/O port: PIO, UART
